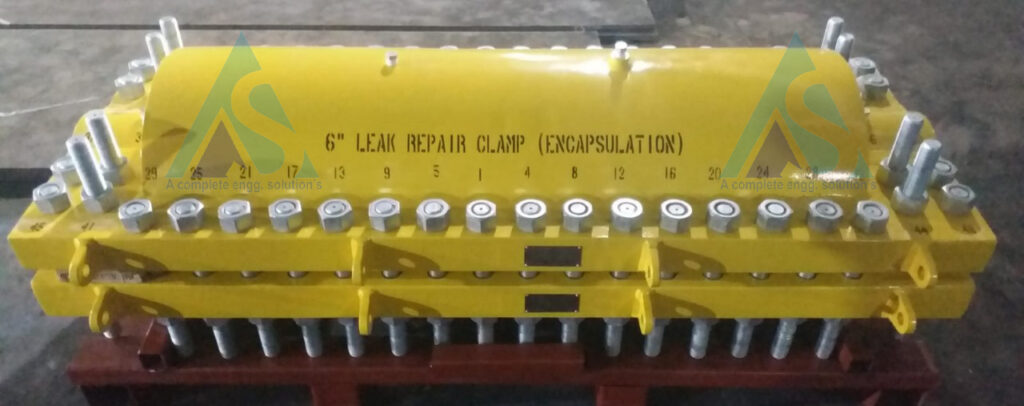

Leak Repair Clamp (Encapsulation)
Aditya steel Engg. Co. is manufacturer and fabricators of Encapsulation leak repair clamps are required to encapsulate leakage in pipeline without Shut Down To Encapsulate Leaking Flange Connection, To arrest leakage of different fitting like Reducer, Insulator joint, Vent, Pressure gauge connection set, to arrest leakage of Insulating Joints, To Encapsulate Leaking Clamp mounted on pipeline.
Aditya steel Engg. Co. Encapsulation leak repair clamps are required to encapsulate leakage in pipeline without Shut Down to To Encapsulate Leaking Flange Connection and To arrest leakage of different fitting like Reducer, Insulator joint, Vent, Pressure gauge connection set, to arrest leakage of Insulating Joints, To Encapsulate Leaking Clamp mounted on pipeline
Encapsulation repair clamps are two-piece, high-strength bolted enclosures designed to seal leaking pipes, particularly bell joints, without removing them. They handle pipe diameters from 92mm to over 1000mm typically featuring ductile iron or stainless steel casing with EPDM/NBR rubber gaskets, and are rated for pressures up to 16 bar (232 PSIG) or higher.
Encapsulation leak repair clamp specification :
Size Range : 2″ to 48″ NB Branch Dia: 100% RunPipeDia.
Design Code : ASME VIII Division 1 / ASME VIII Divisional 1 / ASME VIII Division 2 / ASME VIII Divisional 2.
Clamp Orientation : Horizantal/Vertical/Angular.
Weld Ege Details : ASME B31.3,B31.4,B31.8.
Material : ASTM A350 LF2 / ASME || SA350 LF2 ASTM A105 / ASME || SA105, ASTM A516 Gr. 70.
Elostomeric Sealing : Nitrile , Viton , HNBR. Other Material Options Available on Request.
Overlay Seal Groove : 316 Stainless Steel , Inconnel 625/82 Weld Overlay.
Accessories : ANODE , Heat Insulation Cord Hydraulic Actualater , Sealant Injection Points, SS Protective Sheet, Hook/ Hinges , Lifting of Slings, Airbags, Tensionevs.
