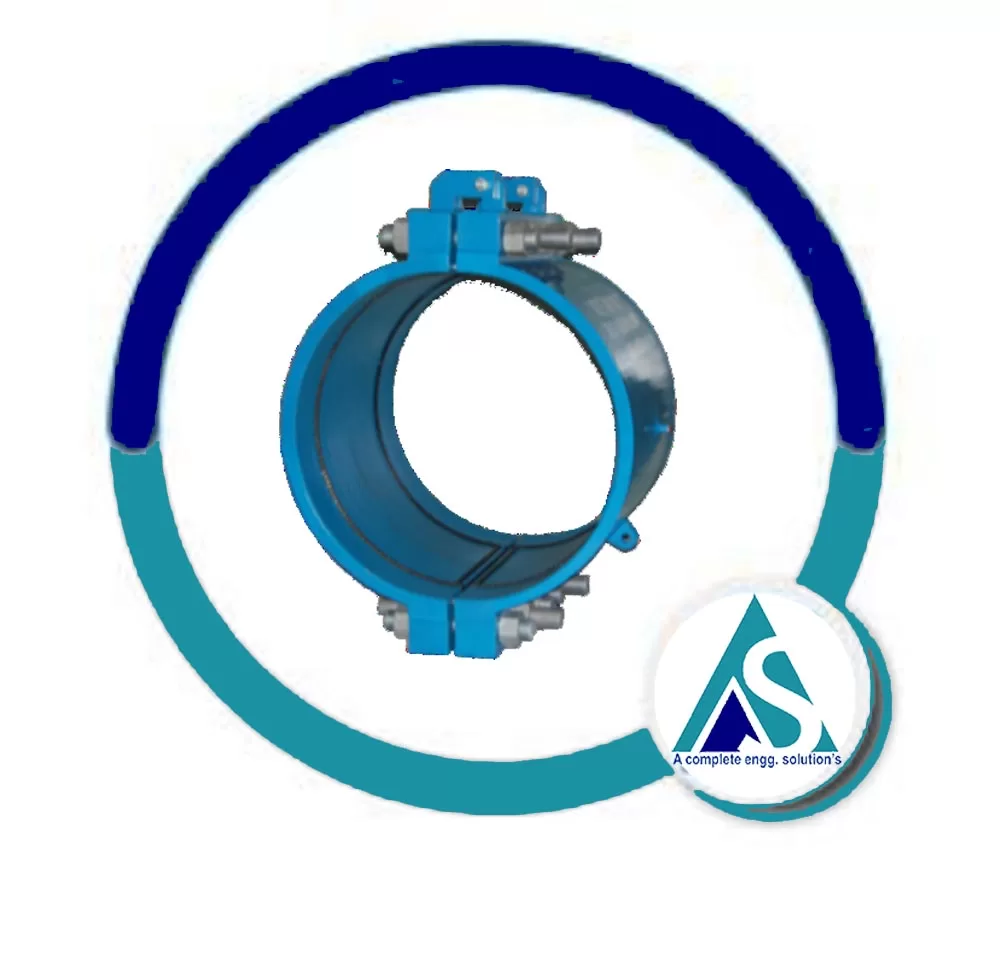

High Pressure – Split Sleeve Repair Clamps

Manufacturers and suppliers of high pressure pipe line repair Split Sleeve Clamps in India

Adi Split Sleeve Repair Clamps (ASSRC) are inexpensive, bolt-together fittings that are meant to provide both temporary and permanent repairs to damaged pipelines. They provide essential pipeline repair options. By virtually tangential bolting, the SSRC clamp halves are linked, creating a high-integrity pressure vessel around the broken pipeline’s affected region.

Split Sleeve Repair Clamps Manufacturers.

Uses for various high-pressure or low-pressure pipeline repairs, Split Sleeve Repair Clamps are commonly utilized. temperature pipes that carry chemicals, oil, water, gas, and other fluids. By bolting together the clamp pieces, a high-integrity pressure vessel is created around the broken or dripping pipe. Elastomer seals of the highest calibre, chosen for compatibility with the pipeline fluid and operation temperature, provide sealing. For a long-lasting solution, the split sleeves may optionally be welded after installation. It might be fully sealed while the pipeline is still in use.

What is High Pressure – Split Sleeve Repair Clamps.

PIPELINE FIT REPAIR SPLIT CLAMP PRODUCTS FOR HIGH PRESSURE PIPES IN THE OIL,GAS AND PETROCHEMICAL ONLINE PIPLINE INDUSTRY

  • Split Sleeve Repair Clamps are frequently used to repair a range of high- or low-pressure, high- or low-temperature pipelines that carry chemical, steam, water, oil, and gas fluids.
  • By bolting together the clamp pieces, a high integrity pressure vessel is created around the broken or leaking pipe.
  • High-quality elastomer seals chosen for compatibility with the pipeline fluid and operating temperature provide sealing.
  • To make the split sleeves permanent, they can also be welded into place. It could be entirely sealwelded to the operating pipe line.

Pipeline Fit – Split Sleeve Repair Clamps

  • For on shore installaton
  • For off shore installaton, with zinc anodes
  • marine epoxy coatng
  • Weldable, with heat insulatng gaskets
  • With girder rings, if required

MANUFACTURING STANDARDS AND SPECIFICATIONS.

  • 300# TO 2500# ANSI Pressure Classes
  • Design based on API 6H. ASME Sec. VIII Div. I design estimations
  • MOC – ASTM A105, A516 Gr. 70 for body materials.
  • Bolt material A193 Gr. B7 and nut material A194 Gr. 2H with PTFE coating.
  • 100 microns of yellow epoxy standard coating
  • (H) NBR gaskets or Viton
  • Heat insulating gaskets are a weldable alternative that is present.
  • On request, double row sealing is available.
  • Installing sacrificial anodes on the sleeves will provide long-term cathodic protection.
  • On request, lengths outside the norm are available.
  • For each order, a complete Material Test Certificate and  paperwork will be provided by aditya steel engg. co.

Aditya steel engineering co. is on of the leading manufacturers of Pipeline Clamps, manufacturers of Pipe Fit Repair Clamps, manufacturers of Pipeline Pipe Coupling, manufacturers of Split Barrel Low Pressure Stainless Steel Split Sleeve, manufacturers of Needle Clamp Pit Hole Repair Clamp, manufacturers of High Pressure Leak Repair Clamp, manufacturers of Pig Launchers & Pig Receivers, manufacturers of Strainers, manufacturers of Weldable split sleeves in India and export to world-widly.

Factory made suppliers of Steel pipe repair clamps, manufacturers of Pvc pipe repair clamps, manufacturers of Heavy duty pipe repair clamps, manufacturers of Stainless steel pipe repair clamps, manufacturers of rubber clamp for pipe leaks, manufacturers of leak repair clamp, manufacturers of Pipe repair clamps and fittings, manufacturers of Stainless steel repair clamps, manufacturers of carbon steel repair clamps, manufacturers of Straub Pipe Couplings And Repair Clamps, manufacturers of Pipe Repair & Leak Clamps, manufacturers of Rapid Pipe Repair Clamp, manufacturers of Clamp Alternatives for Pipe Repair, manufacturers of Repair Clamps – Hangers, Strut & Fasteners, manufacturers of Clamps for Pipe Repair, Split Clamp, Sleeves & Fittings.

Manufacturing Types of leak repair clamps

Manufacturers of piping Leak Repair Clamp, Manufacturers of oil pipline Leak Repair Clamp, Manufacturers of gas pipe line Leak Repair Clamp, Manufacturers of emergency Leak Repair Clamp, Manufacturers of offshore Leak Repair Clamp, , Manufacturers of onshore Leak Repair Clamp, Manufacturers of Pipeline Repair Clamps, Manufacturers of Mechanical Couplings, Manufacturers of 2″ to 48″ MS Split Sleeve Repair Clamp, Manufacturers of Style 360 Full Circle Repair Clamp, Manufacturers of Clamp Alternatives for Pipe Repair, Manufacturers of High Pressure Pipe Repair Clamp, Manufacturers of Boltable Split Sleeve Repair Clamp, Manufacturers of 2″ Pipe Repair Clamp for Steel, Manufacturers of Leak Repair Clamp, Manufacturers of a516 gr. 70 Leak Repair Clamp, manufacturers of heavy duty Leak Repair Clamp, Manufacturers of carbon steel Leak Repair Clamp in India, Gujarat, Pune, Chennai.
