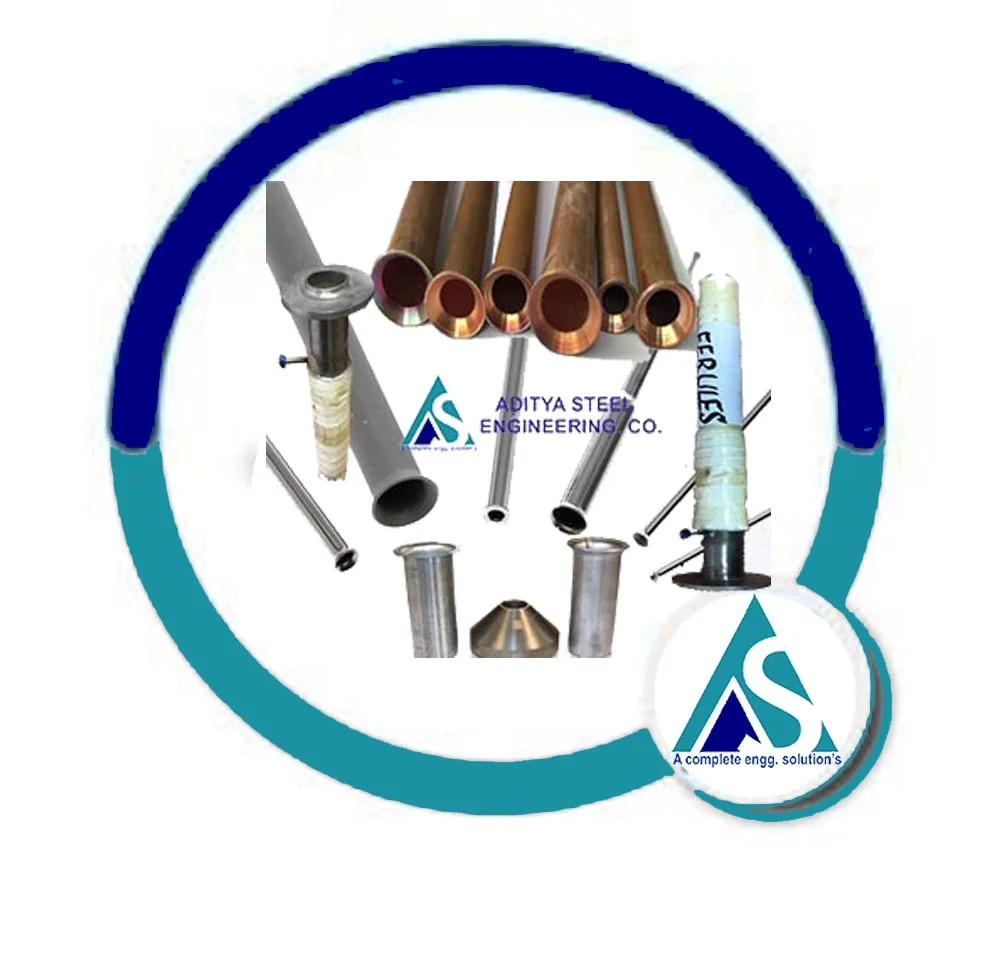

Inconel Alloy 601 Ferrule (Tube Inserts)
Aditya Steel Engineering Co. is a leading manufacturer and supplier of high-quality tube inserts and ferrules of Alloy 601 (2.4851/N06601) for heat exchanger and boiler tubes insert. Trust us for innovative solutions ensuring your operations run smoothly and efficiently.
We are one of the high export quality tube inserts or ferrules manufacturer for heat exchanger and boiler tube insert it includes inconel alloy 601 seamless or welded (ERW) tube inserts or ferrules for high temperature applications.

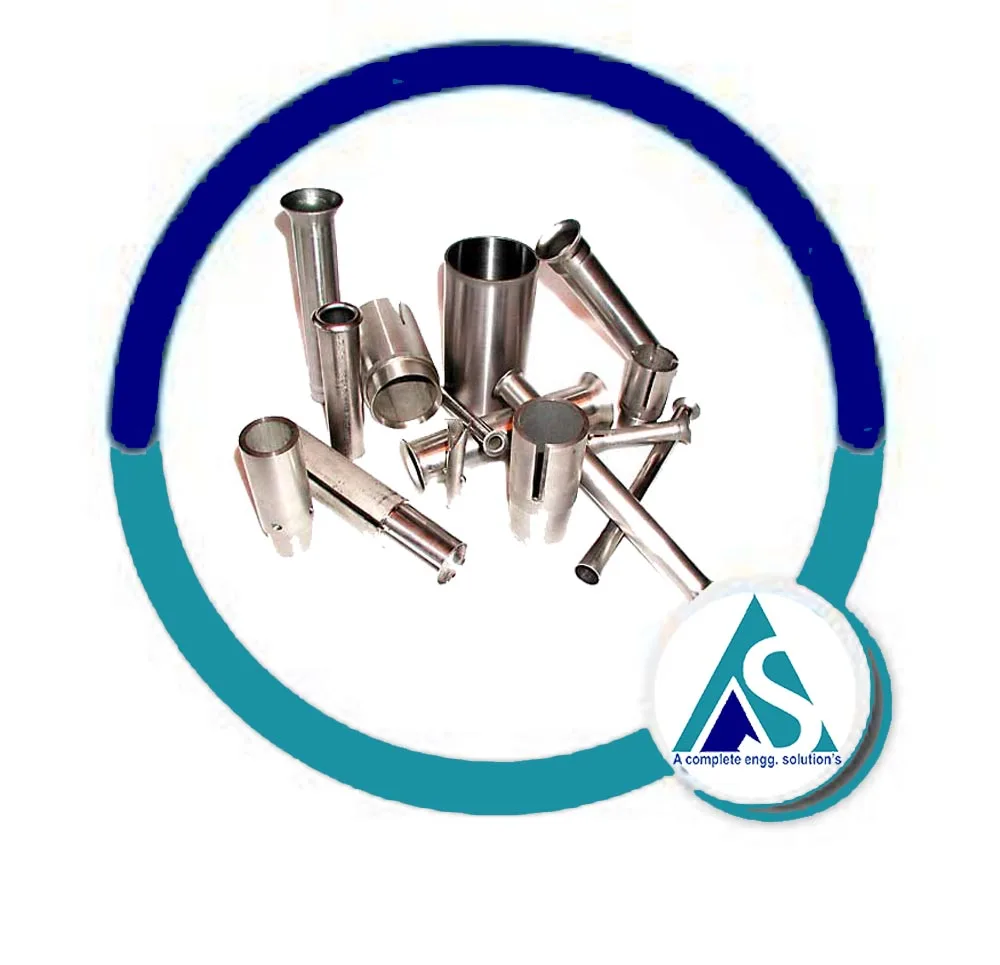

To protect the tube ends of a shell and tube heat exchanger, metal components called tube insert ferrules and tube inserts are inserted into the end of the heat exchanger tube. Since all tube failures happen within the first few inches of the heat exchanger tube inlet-end, this tube ferrule is necessary.
Aditya steel engg. co. is world class high quality manufacturer and suppliers of metal tube inserts, manufacturer of inconel 601 tube inserts, manufacturer of of inconel 601 ferrule, manufacturer of inconel 601 seamless tube inserts, inconel 601 welded tube inserts, inconel alloy 601 seamless tube inserts, inconel alloy 601 welded tube inserts, inconel 601 seamless ferrules, inconel 601 welded ferrules, alloy 601 tube inserts, alloy 601 ferrules, high-temperature alloy 601 tube insert’s or ferrules for heat industrial heat exchanger or boiler tubes.
Corrosion resistance Alloy 601 Tube Inserts or ferrules :
According to DIN EN 10095 Alloy 601 is termed a heat resistant alloy on account of its excellent resistance above 550 °C (1,022 °F) against hot gases and combustion products, as well as against molten salt, while at the same time exhibiting good mechanical short-time and long-term properties. Even under severe conditions, such as under cyclic heating and cooling, Alloy 601 retains a tightly adherent oxide layer which is very resistant to spalling. According to DIN EN 10095, the maximum operating temperature in air is 1,200 °C (2,192 °F), while the loss of weight from scaling is not higher than 1 g/m2 • h on average. Resistance to carburization is good. Alloy 601 has also shown good resistance in (carbo) nitriding conditions, if a sufficiently high oxygen partial pressure is present.
Advantages of of Alloy 601 tube inserts 0r ferrules :
Alloy 601 (2.4851/N06601) tube inserts or ferrule is advantaged by:
- Outstanding resistance to oxidation at high temperatures
- Good resistance to carburizing conditions.
Applications of Alloy 601 high temp. material
Inconel Alloy 601 has found a wide variety of applications in high temperature areas in furnace construction, the chemical industry, in environmental protection facilities, in the automobile industry and in power plants. Typical applications are:
- Trays, baskets and fixtures for heat treatment plants, e. g. in carburizing or carbonitriding environments
- Refractory anchors, strand-annealing and radiant heater tubes, high-velocity gas burners, wire mesh belts in industrial furnaces
- Isolating inserts in ammonia crackers and catalyst support grids in nitric acid production
- High temperature components in automotive parts, e. g. manifolds, glow plug tubes or sensor caps
- Combustion chambers in solid waste incinerators
- Tube supports and ash-handling components
- Components in exhaust gas systems
- Oxygen preheaters
Chemical Composition of Nickel Alloy 601 and Inconel 601
- Al
1.0 – 1.7
- C
.1 max
- Co
1.0
- Cr
21 – 25
- Fe
bal
- Mn
1.0 max
- Ni
58.0-63.0
- S
.015 max
- Si
.5 max
Nickel Alloy 601 and Inconel Alloy 601 Standards
- Rod, Bar, Wire, and Forging Stock
ASTM B 166/ASME SB 166
DIN 17752
DIN 17753
DIN 17754
EN10095
ISO 9723
ISO 9724
ISO 9725
- Plate, Sheet, and Strip
ASTM B 168/ ASME SB 168
DIN 17750
EN10095
ISO 6208
- Pipe & Tube
ASTM B 167/ASME SB 167
ASTM B 751/ASME SB 751
ASTM B 775/ASME SB 775
ASTM B 829/ASME SB 829
DIN 17751
ISO 620
Required Documents:
- Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
- Commercial Invoice, including HS Code
- Packing List including the number of boxes, net weight, gross weight, Marks, and Numbers
- Fumigation Certificates
- Letter of guarantee
- Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
- Test Certificates certifying NACE MR0103, NACE MR0175
- Raw Material Test Reports
- Heat Treatment Charts
- Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
- MATERIAL TRACEABILITY RECORDS
- Quality Assurance Plan (QAP)
- NABL-approved Laboratory Test Reports
Required Testing’s (Destructive, Non Destructive):
- Positive Material Identification – PMI Testing
- Chemical Analysis – Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
